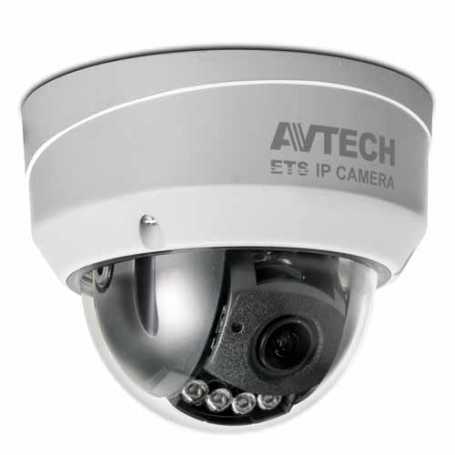

กล้องวงจรปิด AVTECH IP รุ่น AVM 5447

กล้องวงจรปิด AVTECH IP รุ่น AVM 5447

Video

Network Compression H.265 / H.264 / MJPEG

Video Resolution 2592 x 1944 / 2048 x 1536 / 1920 x 1080 / 1280 x 720 / 640 x 480 / 320 x 240

Frame Rate 30/25 IPS

Multiple Video Streaming 4 (H.265 / H.264 / MJPEG)

General

Image Sensor 1/2.9" SONY CMOS image sensor

Min Illumination 0.1 Lux / F1.4(Wide)~F2.8(Tele), 0 Lux (IR LED ON)

Shutter Speed 1/10,000 ~ 1/15 (Slow shutter)

S/N Ratio More than 48dB (AGC off)

Lens Motorized f2.8 ~ 12mm / F1.4 ~ F2.8 (Auto Focus)

Viewing Angle Wide: 70.4° (Horizontal) / 65.6° (Vertical) / 87.4° (Diagonal)

Tele: 25.9° (Horizontal) / 19.2° (Vertical) / 31.8° (Diagonal)

IR LED 4 units

IR Effective Distance** Up to 35 meters

IR Shift YES

Smart Light Control YES

White Balance ATW

AGC Auto

IRIS Mode AES

WDR YES

POE YES (IEEE 802.3af)

Defog YES

External Alarm I/O YES (1 input / 1 output)

Micro SD Card Slot YES (up to 128GB)

RAM 20MB

IP Rating IP66

Vandal-proof Rating IK10

Startup Temperature 0℃ ~ 50℃

Operating Temperature -40℃ ~ 50℃

Operating Humidity 90% or less relative humidity

Power Source (±10%) DC12V / 1A

Current Consumption (±10%) 250mA (IR LED OFF); 550mA (IR LED ON)

Power Consumption (±10%) 8.5W (PoE / PoN) ; 6.5W (DC Adapter)

Net Weight (kg) 1.5
