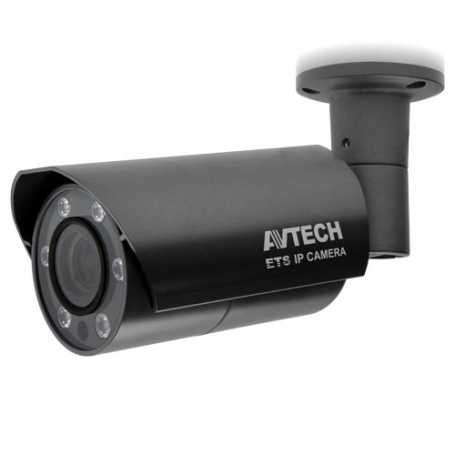

กล้องวงจรปิด AVTECH IP รุ่น AVM5547
กล้องวงจรปิด AVTECH IP รุ่น AVM5547
Video
Network Compression H.265 / H.264 / MJPEG
Video Resolution 2592 x 1944 / 2048 x 1536 / 1920 x 1080 / 1280 x 720 / 640 x 480 / 320 x 240
Frame Rate 30/25 IPS
Multiple Video Streaming 4 (H.265 / H.264 / MJPEG)
Description
กล้องวงจรปิด AVTECH IP รุ่น AVM5547
Video
Network Compression H.265 / H.264 / MJPEG
Video Resolution 2592 x 1944 / 2048 x 1536 / 1920 x 1080 / 1280 x 720 / 640 x 480 / 320 x 240
Frame Rate 30/25 IPS
Multiple Video Streaming 4 (H.265 / H.264 / MJPEG)
General
Image Sensor 1/2.9" SONY CMOS image sensor
Min Illumination 0.1 Lux / F1.4(Wide)~F2.8(Tele), 0 Lux (IR LED ON)
Shutter Speed 1/10,000 ~ 1/15 (Slow shutter)
S/N Ratio More than 48dB (AGC off)
Lens Motorized f2.8 ~ 12mm / F1.4 ~ F2.8 (Auto Focus)
Viewing Angle Wide: 70.4° (Horizontal) / 65.6° (Vertical) / 87.4° (Diagonal)
Tele: 25.9° (Horizontal) / 19.2° (Vertical) / 31.8° (Diagonal)
IR LED 6 units
IR Effective Distance** Up to 50 meters
IR Shift YES
Smart Light Control YES
White Balance ATW
AGC Auto
IRIS Mode AES
WDR YES
POE YES (IEEE 802.3af)
Defog YES
External Alarm I/O YES (1 input / 1 output)
Micro SD Card Slot YES (up to 128GB)
RAM 20MB
IP Rating IP66
Startup Temperature 0℃ ~ 50℃
Operating Temperature -40℃ ~ 50℃
Operating Humidity 90% or less relative humidity
Power Source (±10%) DC12V / 1A
Current Consumption (±10%) 225mA (IR LED OFF); 650mA (IR LED ON)
Power Consumption (±10%) 9.5W (PoE / PoN) ; 8W (DC Adapter)
Net Weight (kg) 0.91
