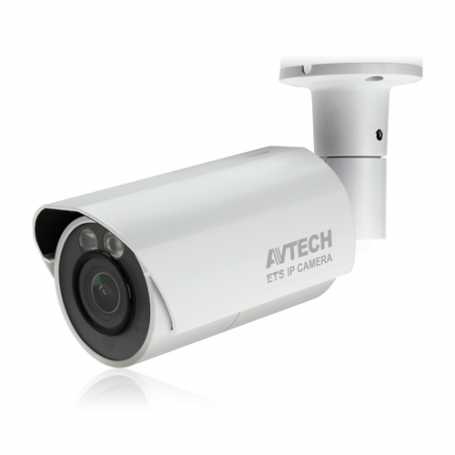

กล้องวงจรปิด AVTECH IP รุ่น AVM553J

กล้องวงจรปิด AVTECH IP รุ่น AVM553J

Video

Network Compression H.264 (Main Profile) / MJPEG

Video Resolution 1920 x 1080 / 1280 x 720 / 720 x 480 / 352 x 240

Frame Rate 30fps

Multiple Video Streaming 4 (H.264, MJPEG)

THB0.00
รวมภาษีแล้ว
check In Stock

Description

กล้องวงจรปิด AVTECH IP รุ่น AVM553J

Video

Network Compression H.264 (Main Profile) / MJPEG

Video Resolution 1920 x 1080 / 1280 x 720 / 720 x 480 / 352 x 240

Frame Rate 30fps

Multiple Video Streaming 4 (H.264, MJPEG)

General

Image Sensor 1/2.8" SONY CMOS image sensor

Min Illumination 0.1 Lux / F1.4(Wide)~F2.8(Tele), 0 Lux (IR LED ON)

Shutter Speed 1/10,000 ~ 1/7.5 (Slow shutter)

S/N Ratio More than 48dB (AGC off)

Lens f2.8 ~ 12mm / F1.4 ~ F2.8

Viewing Angle Wide: 103° (Horizontal) / 54° (Vertical) / 122° (Diagonal)

Tele: 31° (Horizontal) / 17° (Vertical) / 36°(Diagonal)

IR LED 2 units

IR Effective Distance** Default : up to 25 meters

IR Enhanced Mode : up to 35 meters

IR Shift YES

Smart Light Control YES

White Balance ATW

AGC Auto

IRIS Mode AES

WDR YES

POE YES (IEEE 802.3af)

External Alarm I/O YES (1 input / 1 output)

RAM 20MB

MicroSD Card Slot YES (up to 128GB)

IP Rating IP66

Startup Temperature 0 ~ 40

Operating Temperature -25 ~ 50

Operating Humidity 90% or less relative humidity

Power Source (±10%) DC12V / 1A

Current Consumption (±10%) 315mA (LED off) / 500mA (LED on)

Power Consumption (±10%) 8W (PoE); 8W (PoN) ; 7W (DC Adapter)

Net Weight (kg) 1.4
