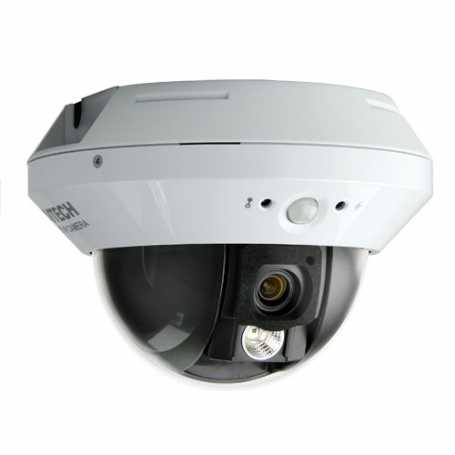

กล้องวงจรปิด AVTECH IP รุ่น AVM521c

กล้องวงจรปิด AVTECH IP รุ่น AVM521c

Video

Network Compression H.264 (Main Profile) / MJPEG

Video Resolution 1920 x 1080 / 1280 x 720 / 720 x 480 / 352 x 240

Frame Rate 30/25fps

Multiple Video Streaming 4 (H.264, MJPEG)

General

Image Sensor 1/ 2.8” SONY CMOS image sensor

Min Illumination 0.1 Lux / F1.5, 0 Lux (LED ON)

Shutter Speed 1/10,000 ~ 1/7.5 (Slow shutter)

S/N Ratio More than 48dB (AGC off)

Lens f3.8mm / F1.5

Viewing Angle 83.2° (Diagonal) / 73.2° (Horizontal) / 42.8° (Vertical)

IR LED 1 Unit

IR Effective Distance** Default: up to 15 meters

PIR Sensor Detection Range 76° wide angle with up to 5m long distance

at 2.5m height (under 30℃)

IR Shift YES

Smart Light Control YES

White Balance ATW

WDR YES

AGC Auto

IRIS Mode AES

POE YES (IEEE 802.3af)

Privacy Mask YES

External Alarm I/O YES (1 in / 1 out)

RAM 20MB

MicroSD Card Slot YES (up to 128GB)

Operating Temperature 0℃~40℃

Operating Humidity 90% or less relative humidity

Power Source (±10%) 12V / 1A

Current Consumption (±10%) 400mA

Power Consumption (±10%) 6W (PoE) ; 6W (PoN) ; 4.8W (DC Adapter)

Net Weight (kg) 0.45
